Mittelalterliche Kleinstadt (Small Medieval Town) - How To 2/3

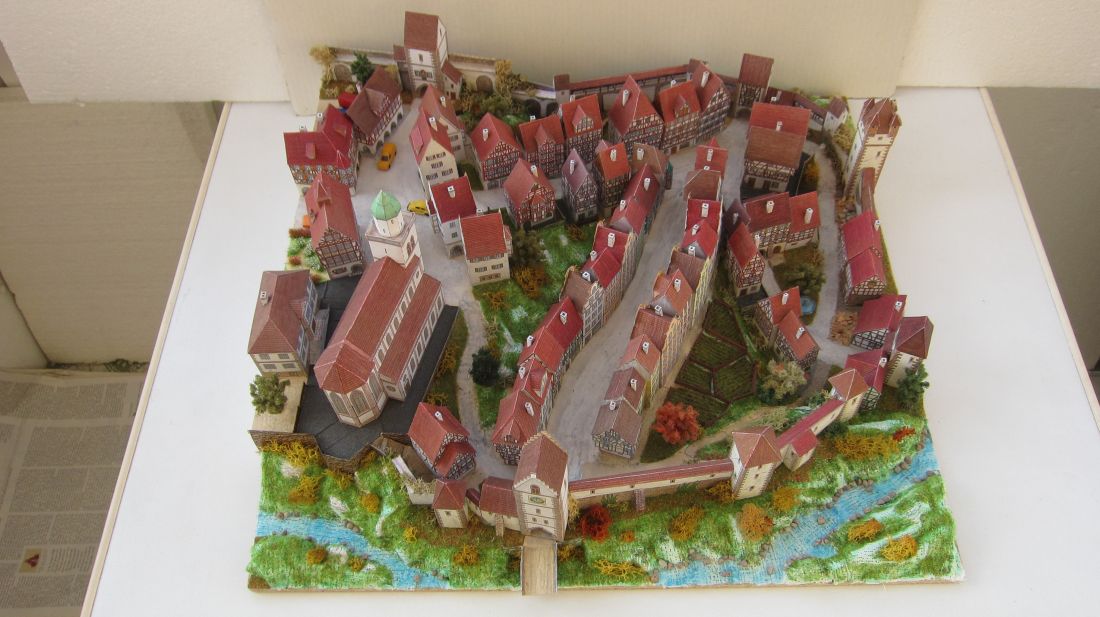

The model "Mittelalterliche Kleinstadt" (small medieval town) built by our member Gerhard Sturm † – as part of a town set in a hilly landscape

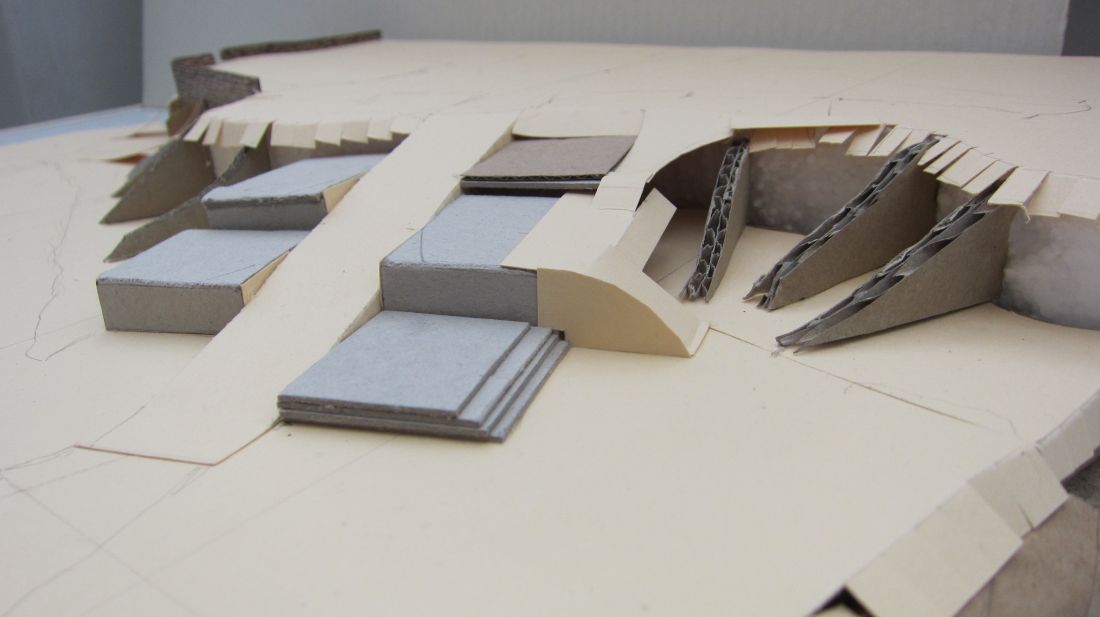

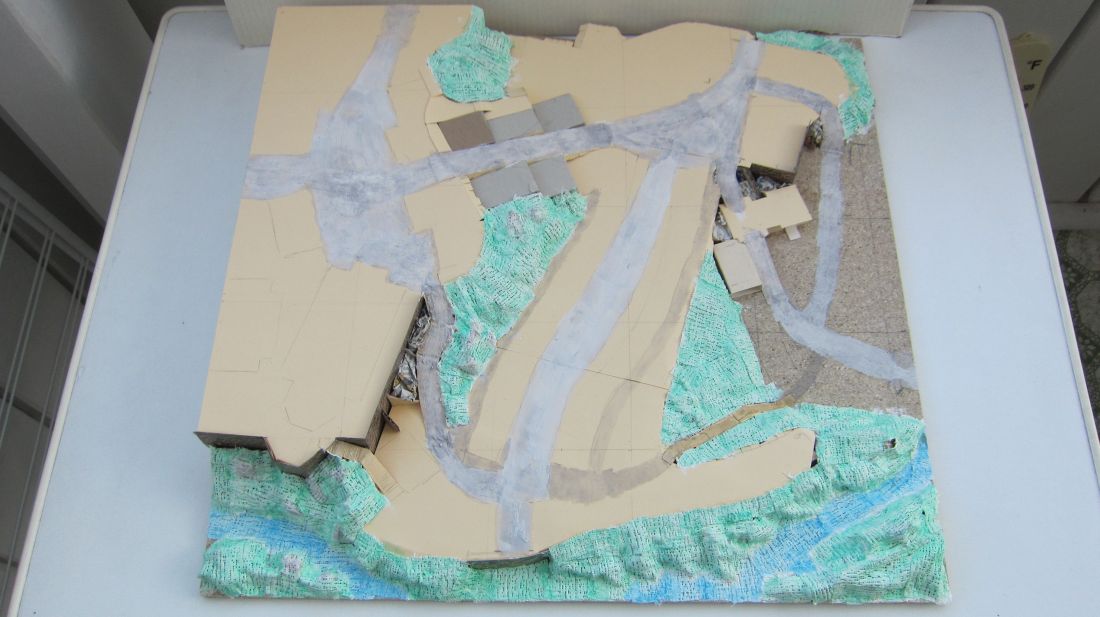

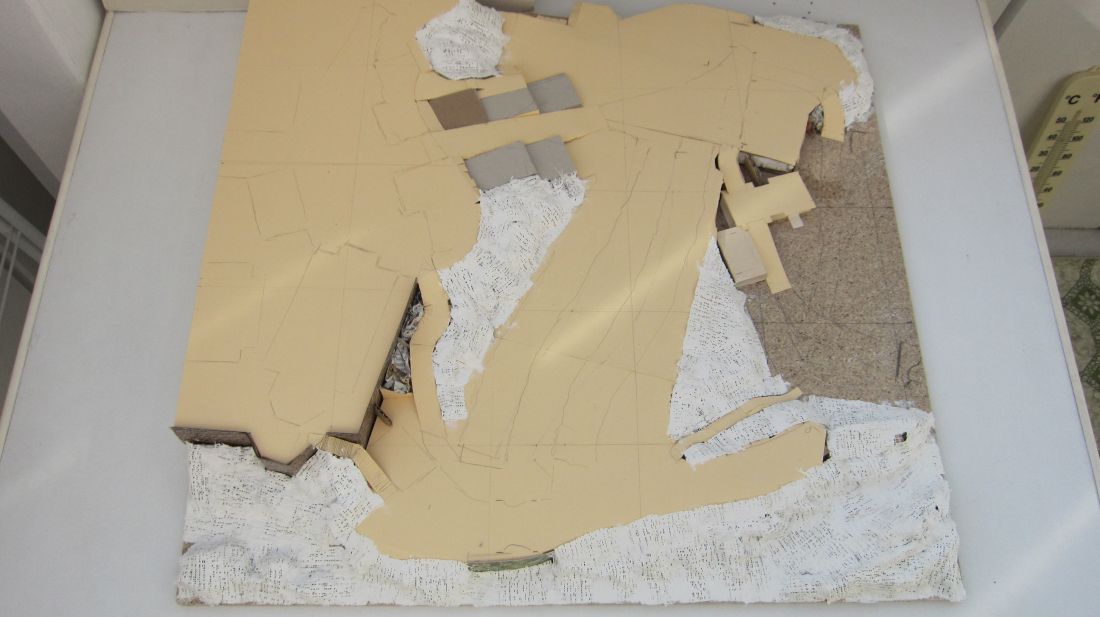

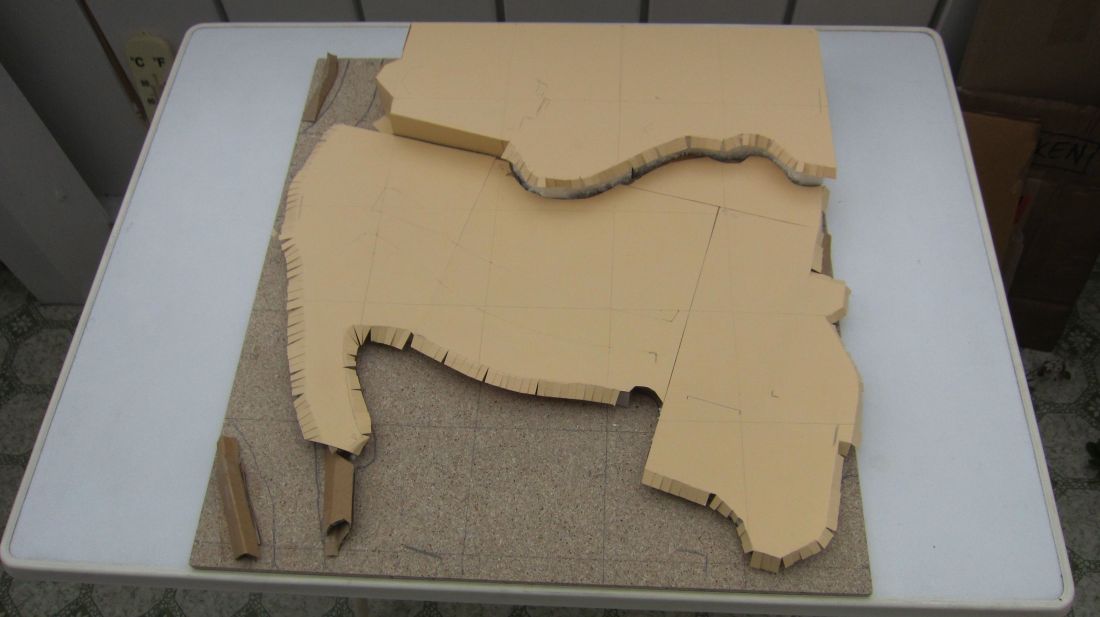

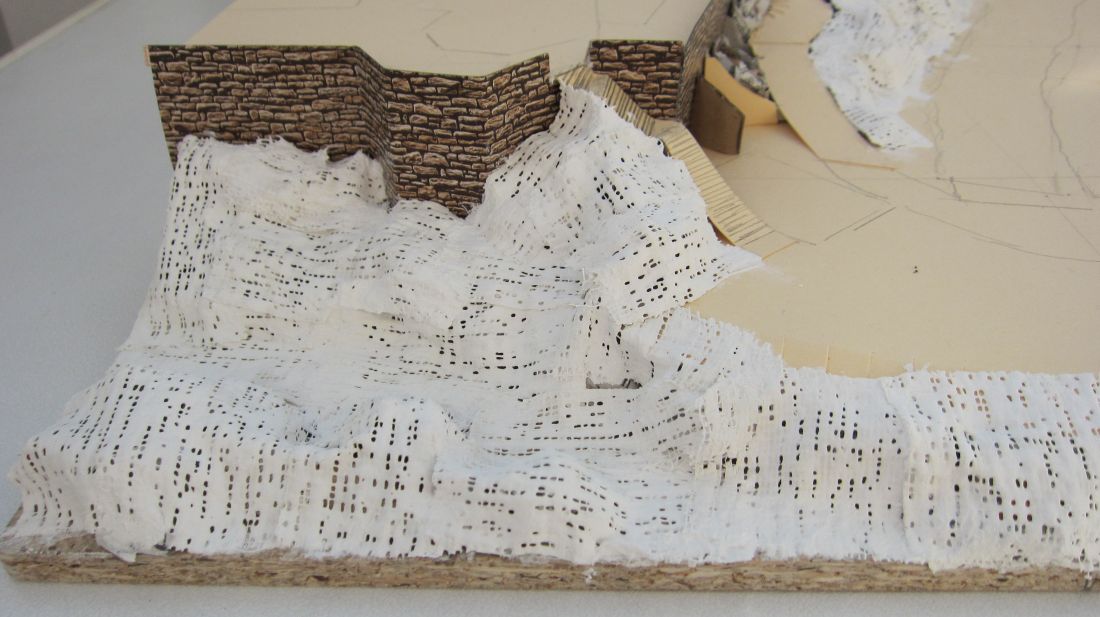

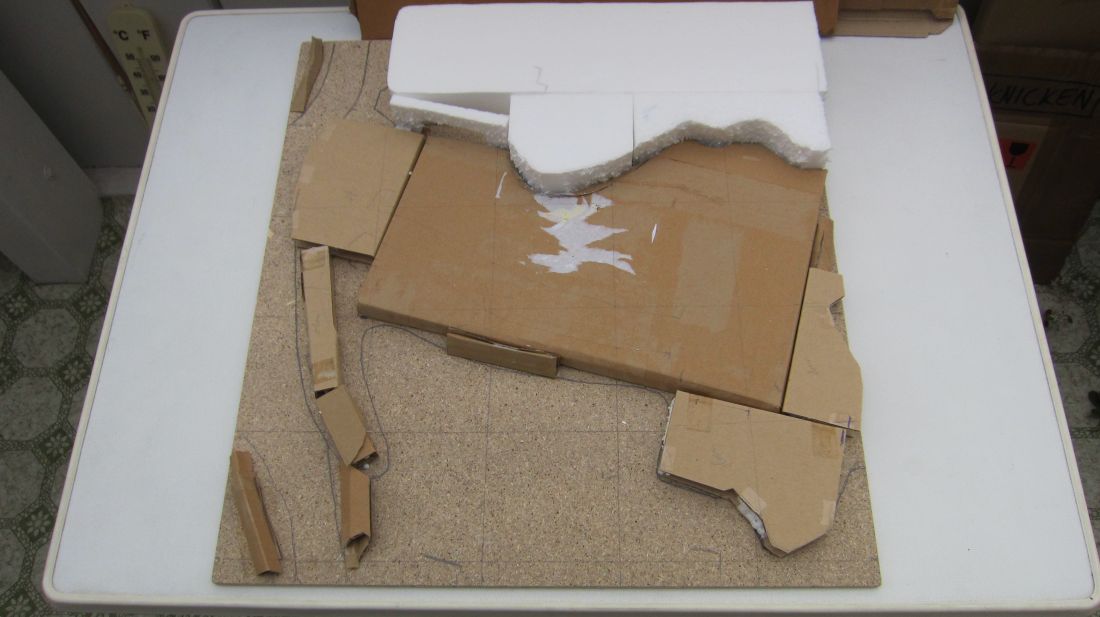

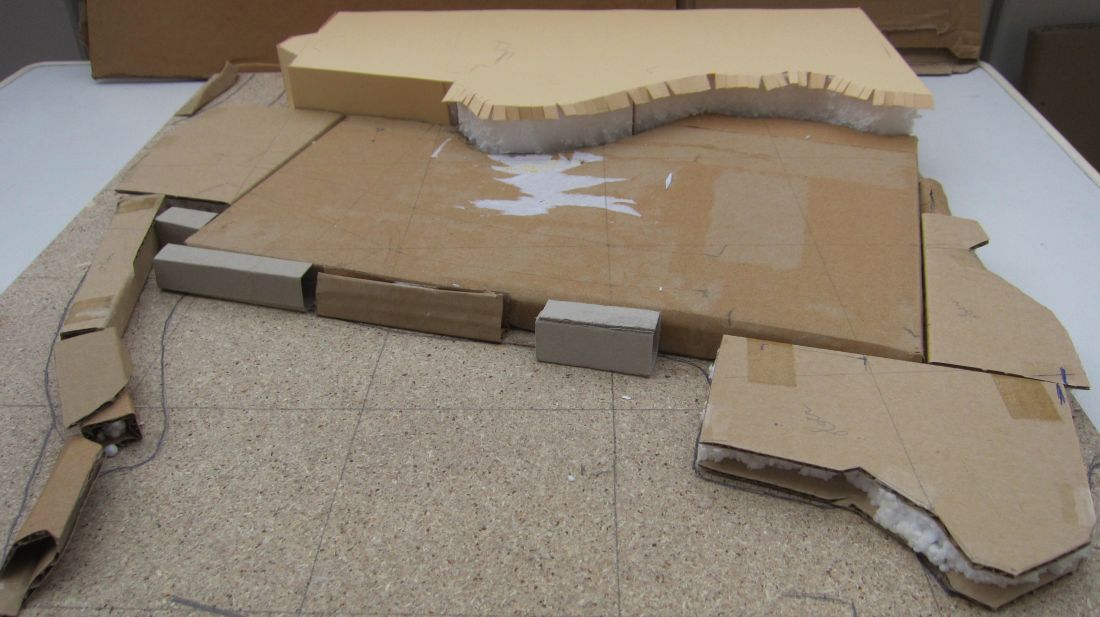

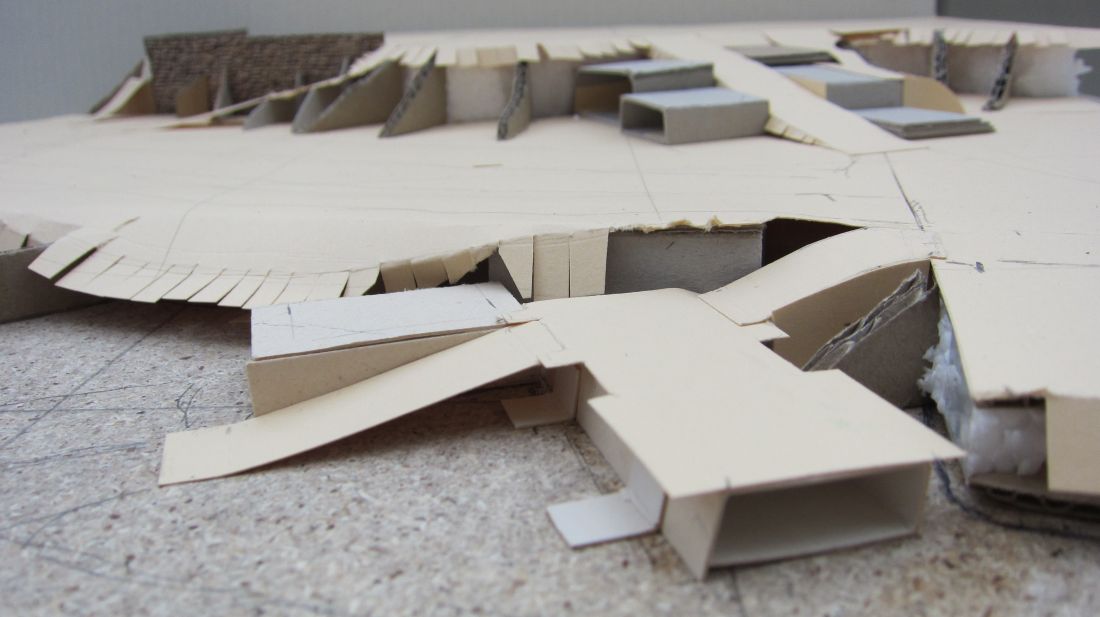

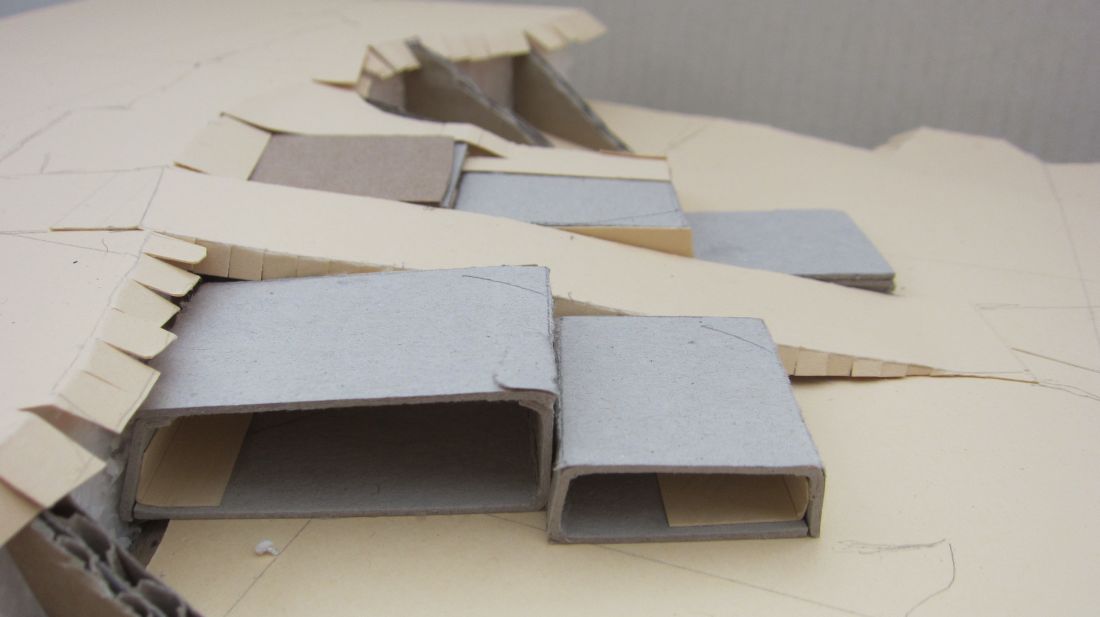

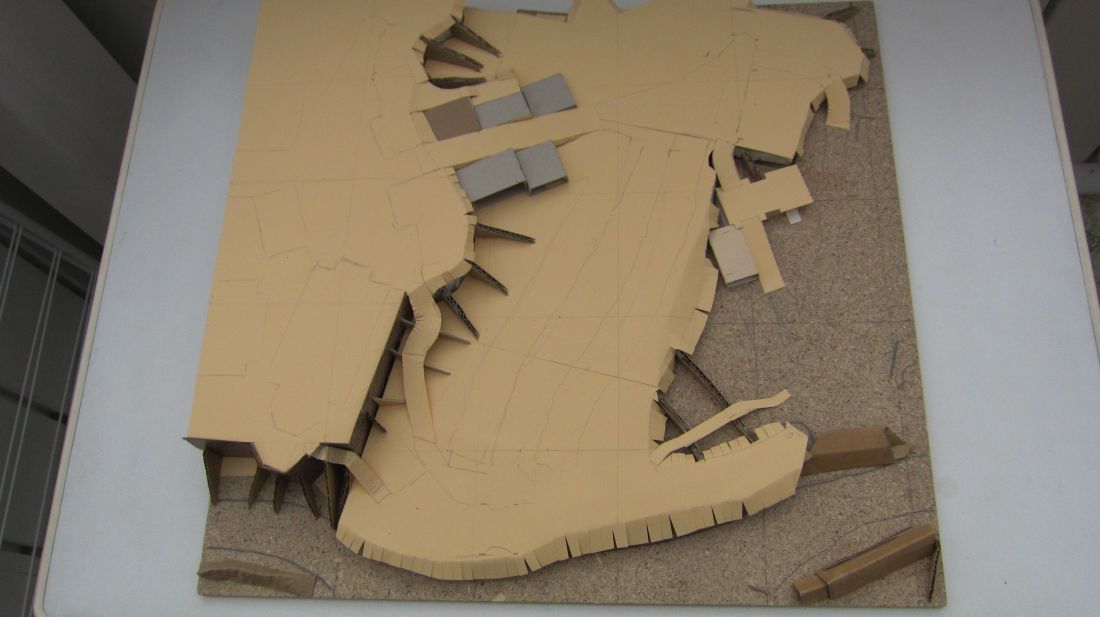

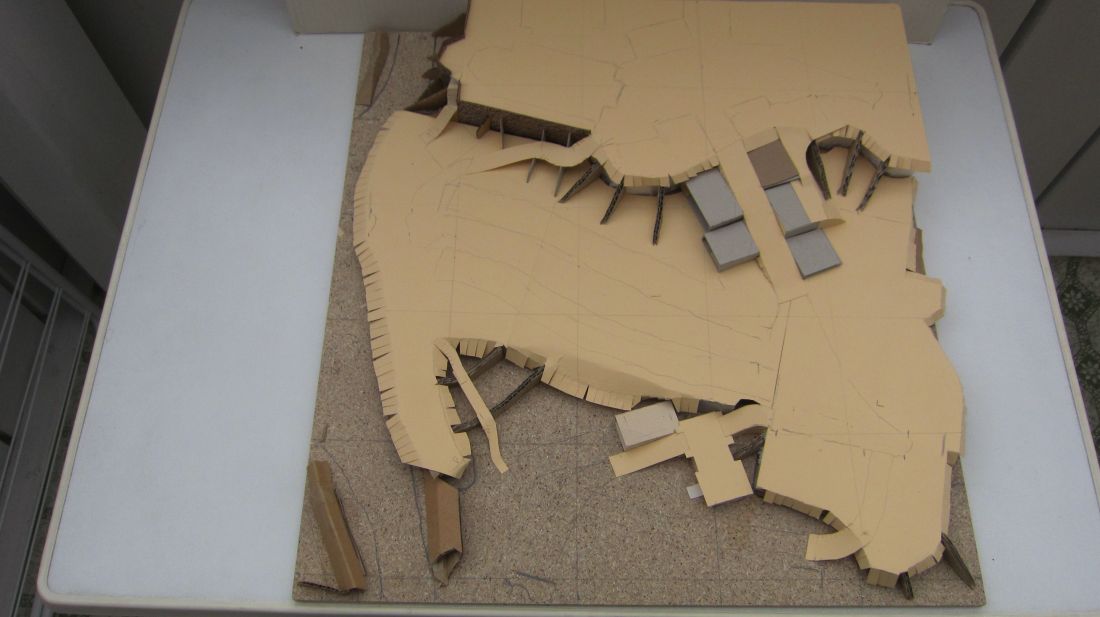

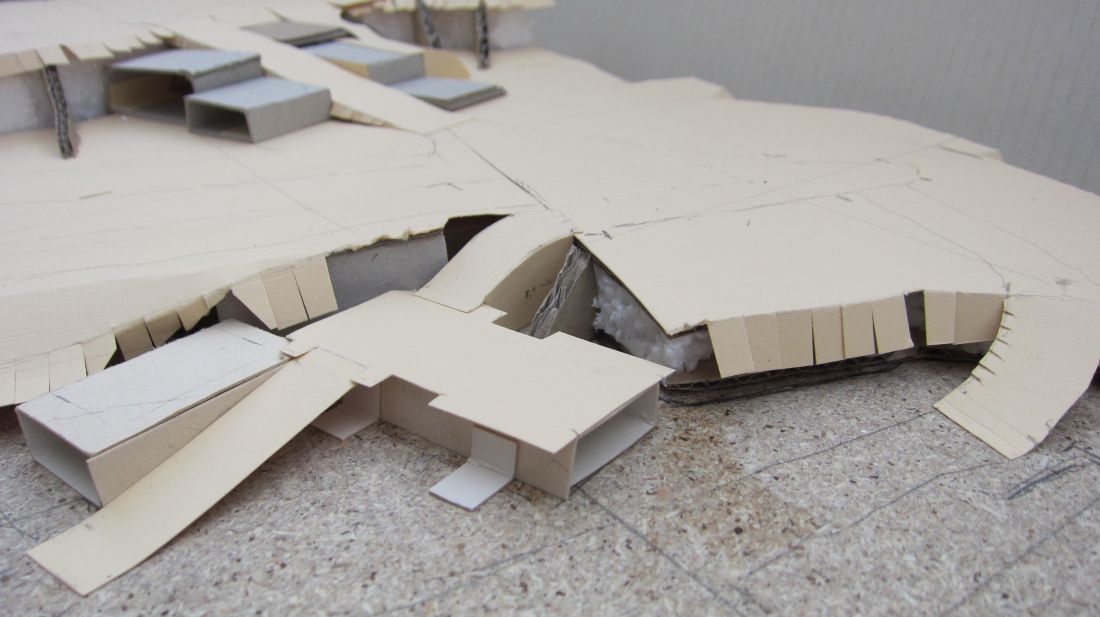

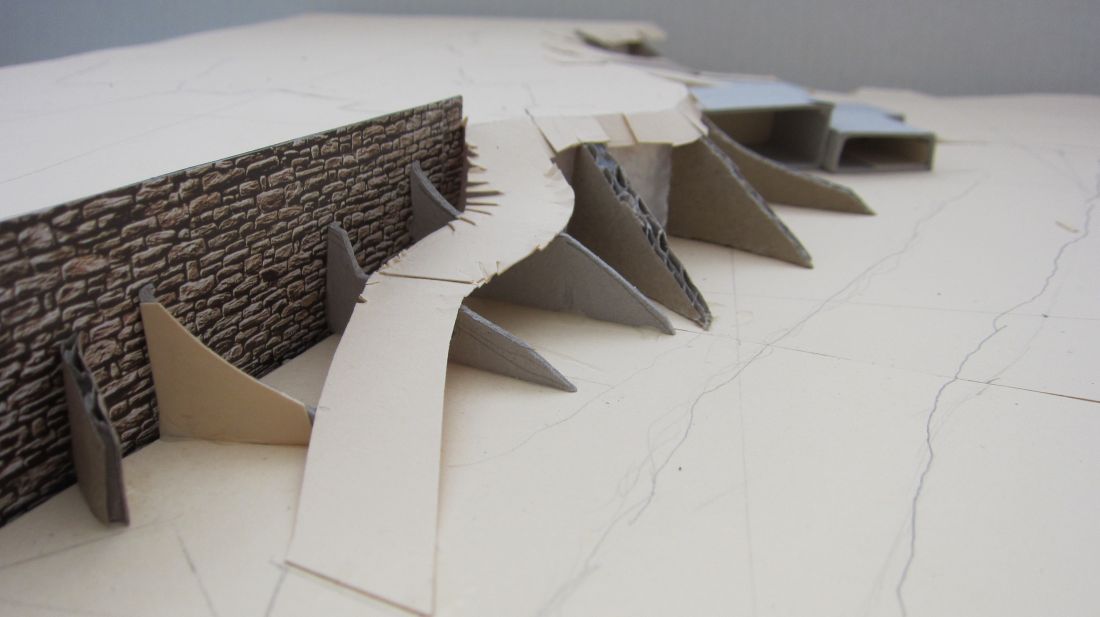

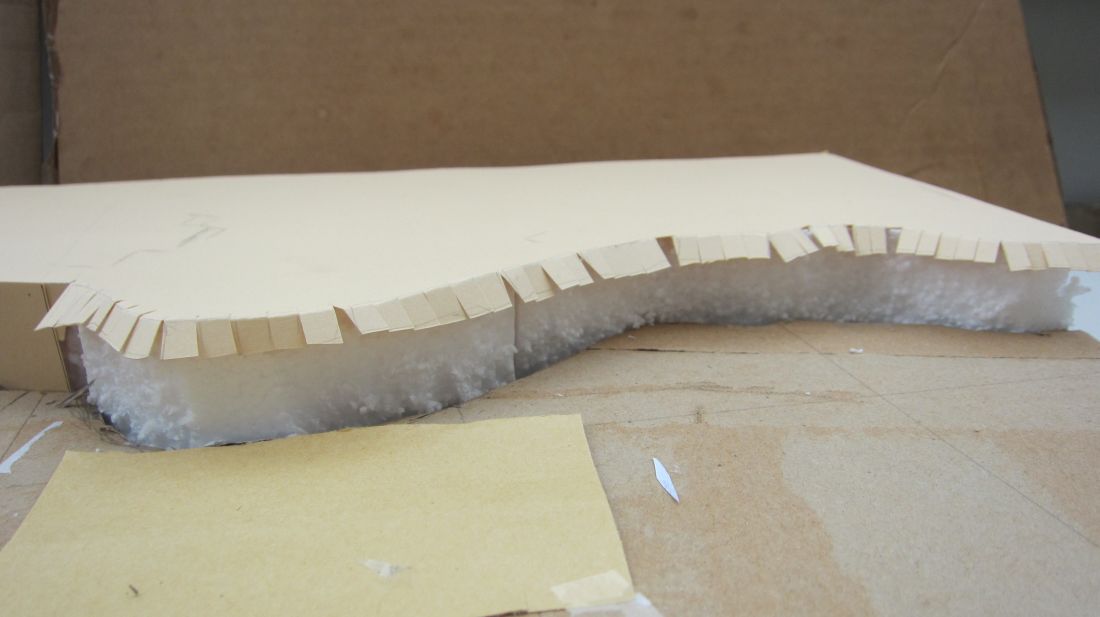

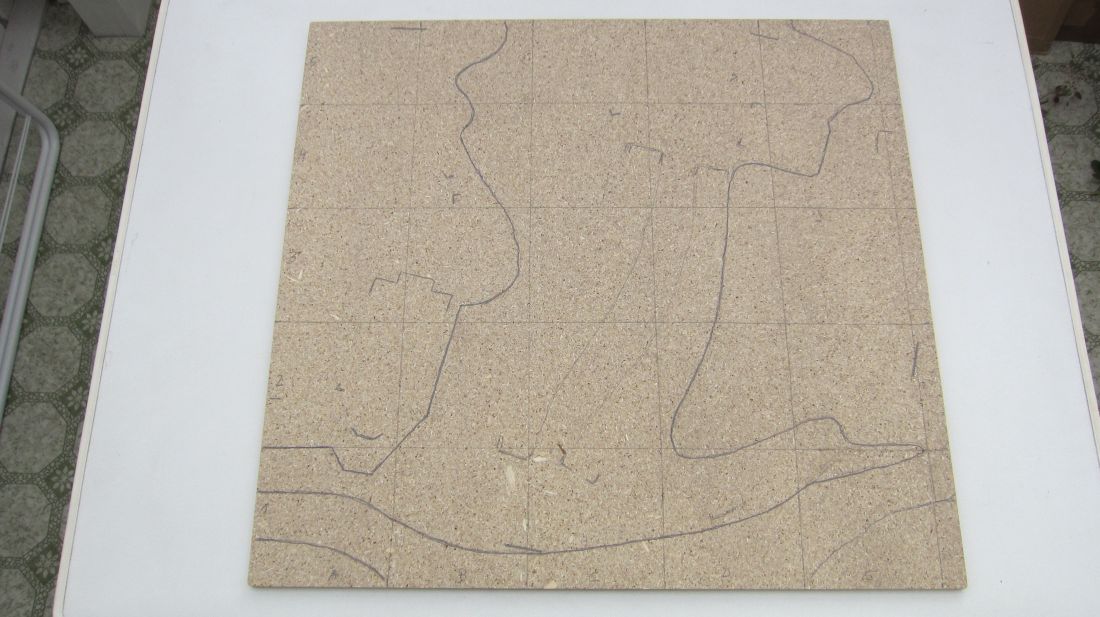

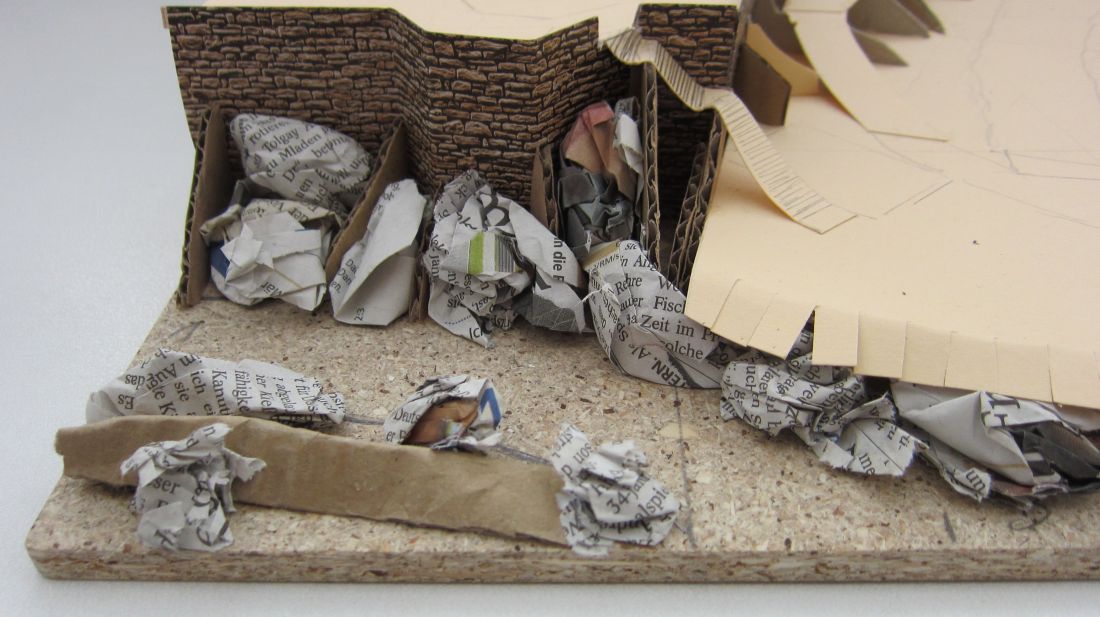

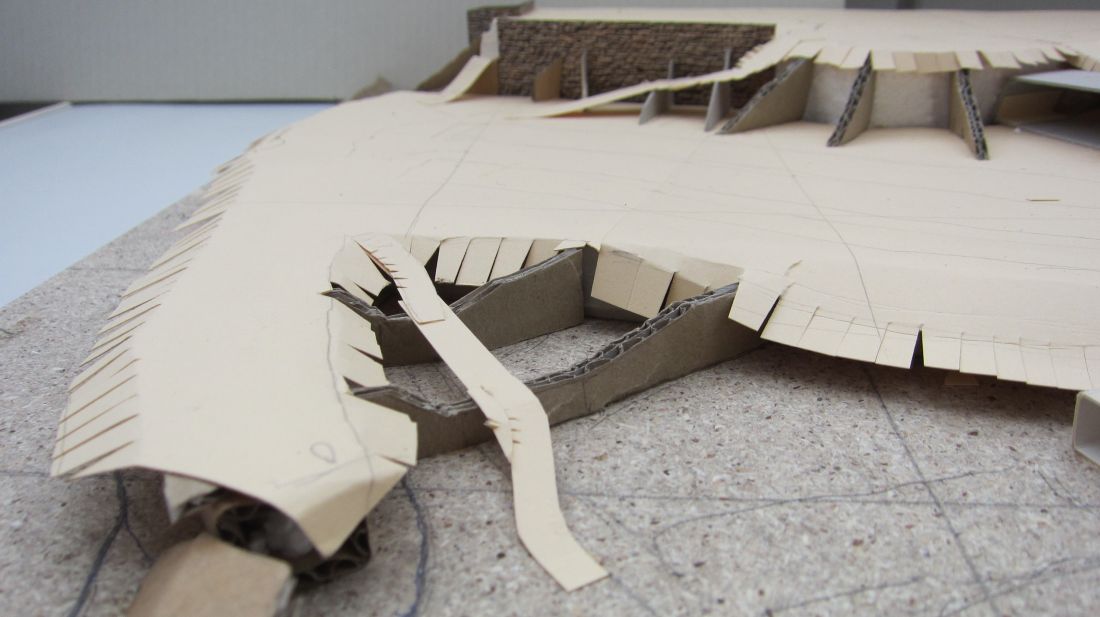

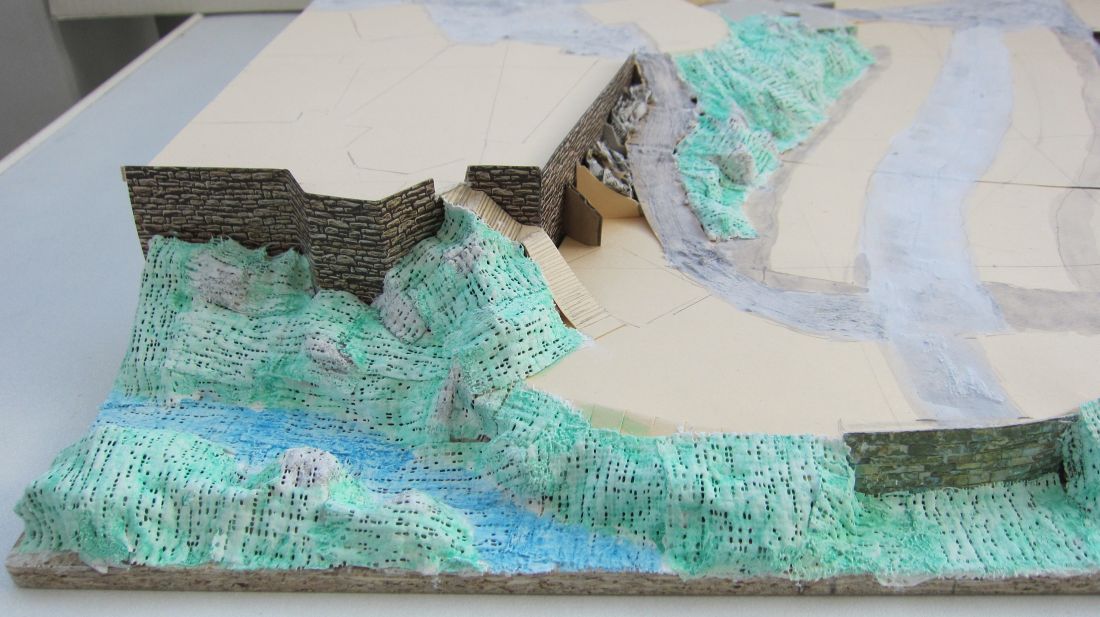

The second series of photos allows a glimpse into the actual building of the diorama. To provide a varied topographic base, as it is typical for the hilly landscapes of southern Germany, the town was planned in 3 levels: the flats near the river, a slightly higher shelf and an even higher (in every sense of the word) "upper town". I created the base mostly from cardboard, plus a piece of styrofoam I found that happened to fit my plans. I covered this structural base with paper balls and plaster bandages which I painted (for streets) or "planted" with greenery (for meadows and gardens).

Click an image to view it in full size - click the left or right margin to go forward or back, click "close" to end the show.

Additional information
  • Background information, bibliographical information, ordering options
  • Images of some model sheets and the built model (by Peter Wolfrum)
  • Images of the built model (by Guido Pascale) on base plate
  • Article by Dieter Nievergelt (extract, 1st page, PDF) about this model in "Zur Geschichte des Kartonmodellbaus", vol. 11, page 5
  • Download: Supplementary sheets and base plate
How to create a small medieval town
Buildingreport by Gerhard Sturm
